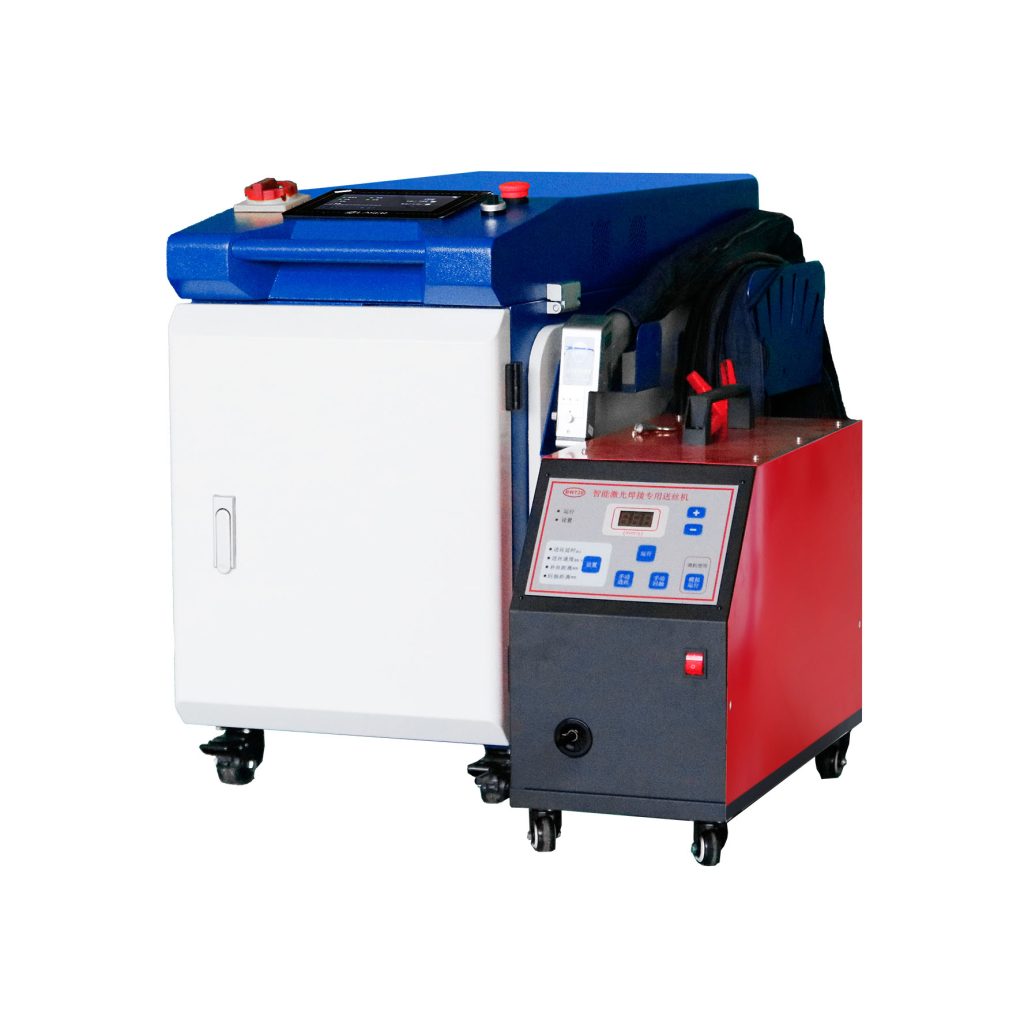

Handheld Fiber Laser Welding Machine

Product Overview

The handheld fiber laser welding machine is a modern laser welding solution designed for fast, precise, and efficient metal processing. The equipment transmits a high-energy laser beam through an optical fiber and then focuses the beam onto the surface of the workpiece through a professional optical system. As a result, the metal material melts quickly and forms a strong and clean weld seam.

Compared with traditional welding equipment, this machine offers higher efficiency, better welding quality, and easier operation. In addition, the handheld welding head allows operators to complete welding tasks more flexibly, especially for complex shapes and large workpieces. Therefore, the equipment is widely used in modern manufacturing industries that require high precision and stable performance.

Moreover, the machine supports different welding methods, including vertical welding, overlap welding, stitch welding, internal corner welding, and external corner welding. Because of its flexible processing capability, it can meet different production requirements in industrial applications.

Working Principle

The machine uses advanced fiber laser technology to generate a concentrated laser beam with high energy density. After transmission through the optical fiber, the laser beam passes through a collimating and focusing system. Then, the focused beam heats the metal surface rapidly and creates a molten pool for welding.

At the same time, the intelligent control system helps maintain stable laser output during operation. As a result, the equipment can achieve smooth weld seams with less deformation and lower heat impact on surrounding materials. Furthermore, the stable welding process improves product consistency and reduces the possibility of welding defects.

Because the laser energy is highly concentrated, the welding speed becomes much faster than traditional TIG or MIG welding methods. Therefore, manufacturers can increase productivity while maintaining excellent welding quality.

Technical Parameters

Name	Handheld Fiber Laser Welding Machine
Model#	DC-LFW1000S		DC-LFW1500S
Core parts	IPG/Max/Raycus fiber laser DC laser welding head，DC handheld welding control system
Power	1000W		1500W
Working speed	0~300mm/s (adjustable)
Laser swing scope	Welding spots swing round（0mm-4mm）
Welding thickness	Depending on materials, the Fiber Laser Welding Machine allows for adaptable welding solutions. (stainless steel≤2.0mm)	Depending on materials (stainless steel≤2.5mm)
Size	1010*630*1120mm	1010*630*1120mm
Power supply and work temperature	AC 220V/30A/50Hz， 20℃~35℃

Sample Show

Application Area
It is widely used in the advertising and metal industry, such as: LED letters, advertising signs, aluminum alloy parts and many other industries.

Main Features

1. High Welding Speed

The welding speed is more than twice as fast as many traditional welding methods. Consequently, manufacturers can complete production tasks in a shorter time and improve overall working efficiency.

In addition, the high-speed welding process helps companies increase production capacity while reducing labor costs. Therefore, the machine is especially suitable for factories with large production demands.

2. Smooth and Beautiful Weld Seams

The machine produces clean, smooth, and attractive weld seams. In most applications, operators do not need additional grinding or polishing after welding. As a result, companies can save both production time and finishing costs.

Furthermore, the laser welding process creates minimal deformation and reduces welding marks. Therefore, the final products maintain better appearance and higher precision.

3. Easy Operation

The handheld welding gun is lightweight, flexible, and comfortable to use. Moreover, the control interface is simple and user-friendly. Even operators without extensive welding experience can quickly learn to use the equipment effectively.

At the same time, the machine supports adjustable welding parameters for different materials and thicknesses. Therefore, users can easily switch between various production tasks.

4. Energy Saving and Low Operating Cost

Compared with many traditional welding systems, the machine consumes less power during operation. Consequently, businesses can reduce electricity costs while maintaining high production efficiency.

In addition, the laser system has stable performance and requires less maintenance. Therefore, companies can lower long-term operating and maintenance expenses.

5. Flexible and Portable Design

The compact structure makes the machine easy to move and install. Because of the handheld welding head, operators can weld large workpieces and difficult welding positions more conveniently.

Furthermore, the portable design improves working flexibility in workshops and industrial production environments. As a result, the equipment can adapt to different processing conditions.

6. Stable Welding Performance

The advanced laser source provides stable energy output during long working hours. Therefore, the machine maintains consistent welding quality even in continuous industrial production.

At the same time, the intelligent cooling system improves equipment stability and extends service life. Consequently, manufacturers can achieve reliable and efficient operation for long-term use.

Advantages Compared with Traditional Welding

Traditional welding methods often create excessive heat, large deformation, and rough weld seams. In contrast, laser welding technology provides higher precision and cleaner results.

Moreover, traditional welding usually requires skilled workers and additional polishing processes. However, the handheld laser welding machine simplifies operation and reduces post-processing requirements. Therefore, companies can save labor costs and improve production efficiency at the same time.

In addition, the laser welding process creates a smaller heat-affected zone. As a result, the surrounding material experiences less thermal damage, which helps maintain product quality and structural strength.

Application Areas

This laser welding equipment is widely used in many industries, including:

• Stainless steel processing
• Kitchenware manufacturing
• Metal furniture production
• Hardware processing
• Automotive parts manufacturing
• Door and window production
• Advertising sign fabrication
• Electrical appliance manufacturing
• Sheet metal processing
• Aerospace component production

Furthermore, the machine is suitable for welding stainless steel, carbon steel, galvanized sheet, aluminum alloy, and other metal materials. Therefore, it can meet the production needs of different industrial sectors.

Why Choose This Equipment

The handheld laser welding machine combines speed, precision, efficiency, and flexibility in one system. Because of its advanced laser technology, manufacturers can improve product quality while reducing production costs.

In addition, the simple operation and stable welding performance make the equipment suitable for both small workshops and large industrial factories. As a result, more companies are choosing laser welding technology to upgrade their manufacturing processes.

Therefore, this equipment has become an important solution for modern metal fabrication, intelligent manufacturing, and industrial automation.
