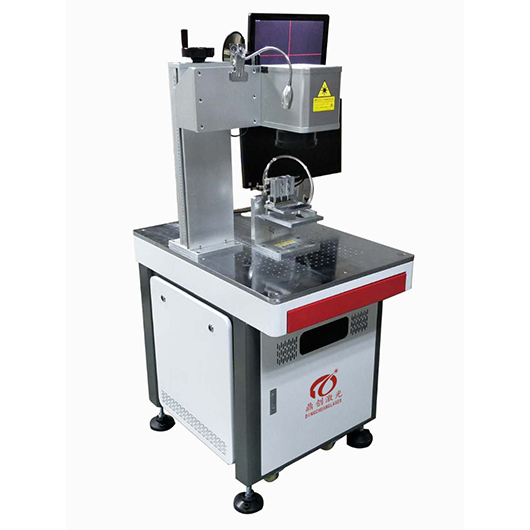

Fiber Laser Galvanometer Welding machine

The Fiber Laser Galvanometer Welding machine adopts quasi-continuous fiber lasers, it is very suitable for the industrial applications with higher requirement to long pulse width and high peak , such as spot welding, seam welding, drilling, etc.

  • Product Details

Fiber Laser Galvanometer Welding machine a laser generated by a laser that passes through a high-speed scanning galvanometer and passes through an Fθ A laser welding equipment that focuses on the welding of machined parts with a lens

It adopts quasi-continuous fiber lasers, it is very suitable for the industrial applications with higher requirement to long pulse width and high peak , such as spot welding, seam welding, drilling, etc.

Features

  1. Small focusing spot diameter and excellent beam quality ensure the processing quality of products
  2. Stable light output, reduce the occurrence of defective rate
  3. High repetition frequency, can realize high-speed welding, significantly improve production efficiency
  4. The equipment is air-cooled and compact design, occupies a small area, and is easy to carry out production line layout and automation integration

Technical Parameters

Name Fiber Laser Galvanometer Welding machine
Model# DC-LFW150Z DC-LFW300Z
Power 150W 300W
Laser wavelength 1070nm
Pulse width 0.2~50ms
Puls frequency 1-2500Hz
Maximum peak 1500W 3000W
Maximum energy 15J 30J
Cooling Mode Air cooling
Power supply and work temperature AC 220V/50Hz, 10℃~35℃

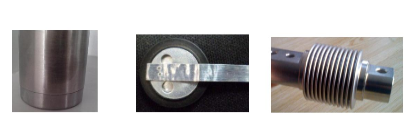

Sample Show

Application Area

Widely used and welded in precision microelectronic components, integrated circuit leads, stainless steel honeycomb cores, precision welding, high-power diodes, mobile phone batteries, mobile phone cases, vacuum cups, stainless steel honeycomb boards, sensors, tungsten wires, aluminum alloys, laptop casings, filters, nozzles, golf heads, zinc alloy handicrafts, and more.
